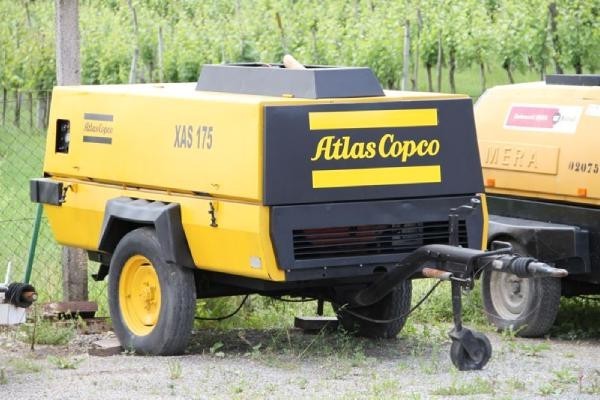

Atlas Copco XAS 175 portable diesel air compressor

Type:

Atlas Copco XAS 175

Engine: Diesel - Deutz

Air flow (m3/h ; l/s ):

630 m3/h

175 l/s

Working pressure (bar):

 7 bar

Engine power (kW): 82,4 kW
Fuel tank capacity (liter): 150 liter
Fuel consumption (l/h): 12 l/h
Dimensions (mm): 4500x1650x1550
Weight (kg): 1900 kg
Towable Without licence plate



Portable diesel air compressor rental Bérgép Kft.

Engine

The compressors are driven by a liquid-cooled diesel engine. The engine’s power is transmitted to the compressor through a heavy-duty coupling.

Compressor

The compressor casing houses two screw-type rotors, mounted on ball and roller bearings. The male rotor, driven by the engine, drives the female rotor. The element delivers pulsation-free air. Injected oil is used for sealing, cooling and lubricating purposes.

Compressor oil system

The oil is boosted by air pressure. The system has no oil pump. The oil is removed from the air, in the air/oil vessel at first by centrifugal force, secondly by the oil separator element. The vessel is provided with an oil level indicator.

Regulation

The compressor is provided with a continuous regulating system and a blow-down valve which is integrated in the unloader assembly. The valve is closed during operation by air receiver pressure and opens by air receiver pressure via the compressor element when the compressor is stopped. When the air consumption increases, the air receiver pressure will decrease and vice versa. This receiver pressure variation is sensed by the regulating valve which, by means of control air to the unloader and engine speed regulator, matches the air output to the air consumption. The air receiver pressure is maintained between the pre-selected working pressure and the corresponding unloading pressure.

500.000 HUF
25 000 HUF + VAT / day
